OEM Bare AAC Conductor Electric Overhead Transmission Line

  • 1
  • 2
  • 3

Brand Name : Suntech

Model Number : AAC

Certification : ISO9001,CCC

Place of Origin : Ningbo,China

MOQ : 1000m

Price : Negotiation

Payment Terms : L/C, T/T, Western Union

Supply Ability : 6000Ton/Month

Delivery Time : 5-7 workdays

Packaging Details : Exported Wooden Case or Containers

Name : Bare Transmission Conductor

Type : Low/Medium/High Voltage

Application : Power Transmission

Conductor Type : Solid

Standard : BS IEC ASTM DIN

Material : Aluminum

Contact Now

OEM&ODM AAC Conductor Electric Overhead Bare Transmission Conductor
nvar Conductor

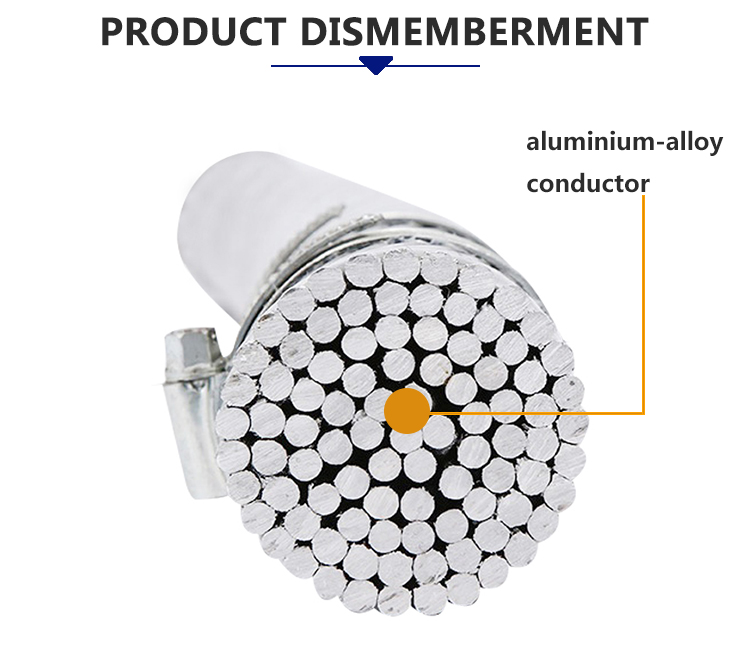

All Aluminium Alloy Conductors (AAAC) is a concentric-lay-stranded conductor consisting of aluminum-alloy wires (6201-T81)available in single layer and multi-layer constructions. As compared to a conventional ACSR conductor, the lighter weight,comparable strength & current carrying capacity, lower electrical losses and superior corrosion resistance have given AAAC a wide acceptance in the distribution and medium & high voltage transmission lines.

Product Description
OEM Bare AAC Conductor Electric Overhead Transmission Line
Conductor size
(mcm)
Number and diameter of wire (mm)
Cross-sectional Area
(mm2)
Overall diameter (mm)
Weight (kg/km)
Calculated Breaking load
Calculated D.C.
resistance At 20℃
20℃
(ohm/km)
kgf
kN
66.36
7/2.47
33.54
7.41
92
1087
10.66
0.9987
77.47
7/2.67
39.19
8.01
108
1270
12.45
0.8547
105.60
7/3.12
53.52
9.36
148
1734
17.00
0.6259
123.30
7/3.37
62.44
10.01
172
2023
19.84
0.5364
133.10
7/3.50
67.35
10.50
186
2091
20.51
0.4973
155.40
7/3.78
78.55
11.34
217
2439
23.92
0.4264
167.80
7/3.93
84.91
11.79
234
2636
25.85
0.3945
195.70
7/4.25
99.30
12.75
274
3083
30.23
0.3373
211.60
7/4.42
107.4
13.26
296
3335
32.71
0.3119
246.90
7/4.77
125.1
14.31
345
3884
38.09
0.2678
394.50
19/3.66
199.9
18.30
551
6012
58.96
0.1676
400.00
19/3.69
203.2
18.45
560
6112
59.94
0.1648
450.00
19/3.91
228.1
19.55
629
6861
67.28
0.1468
465.40
19/3.98
236.4
19.90
652
7110
69.73
0.1417
500.00
19/4.12
253.3
20.60
698
9619
74.72
0.1322
550.00
37/3.10
279.3
21.70
770
8577
84.11
0.1199
559.00
19/4.36
283.7
21.80
782
8533
83.64
0.1181
600.00
37/3.23
303.2
22.61
836
9311
91.31
0.1105
650.00
37/3.37
330.0
23.59
910
10134
99.38
0.1015
652.40
19/4.71
331.0
23.55
913
9956
97.64
0.1012
700.00
37/3.49
354.0
24.43
976
10418
102.2
0.09462
740.00
37/3.59
374.5
25.13
1033
11022
108.1
0.08944
750.00
37/3.62
380.8
25.34
1050
11207
109.9
0.08796
800.00
37/3.73
404.3
26.11
1115
11899
116.7
0.08285
900.00
37/3.96
455.7
27.72
1256
13411
131.5
0.07350
927.20
37/4.02
469.6
28.14
1295
13821
135.5
0.07133
1000.00
37/4.18
507.7
29.26
1400
14942
146.5
0.06598

OEM Bare AAC Conductor Electric Overhead Transmission Line


Product Tags:

Bare AAC Conductor



AAC Conductor Overhead Transmission



Electric AAC Overhead Transmission Line


Wholesale OEM Bare AAC Conductor Electric Overhead Transmission Line from china suppliers

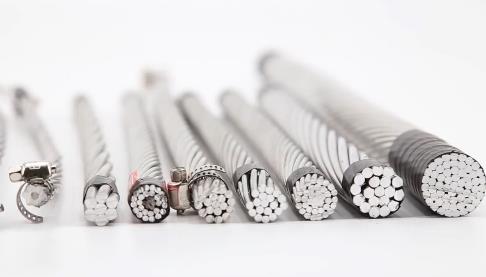

OEM Bare AAC Conductor Electric Overhead Transmission Line Images
